Here are some key highlights of the plugin's features:
Compatibility Across Tekla Versions: the plugin is compatible with multiple versions of Tekla Structures, allowing users to seamlessly integrate it into their existing workflows regardless of their Tekla setup.

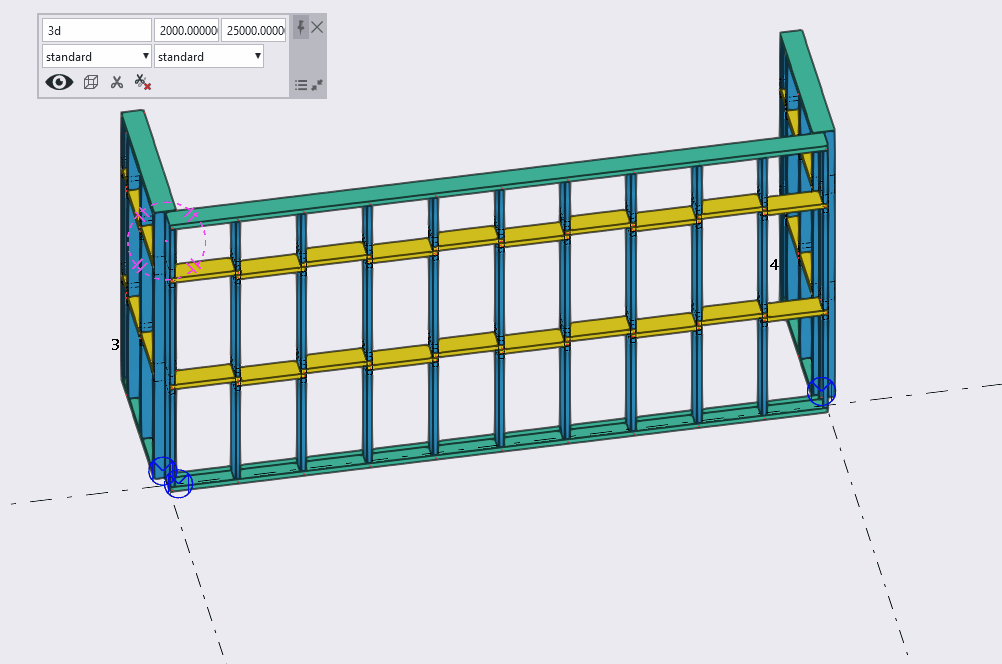

Direct Manipulation: Through the innovative use of Direct Manipulation, the plugin offers a user-friendly and intuitive interface that simplifies the process of designing and managing LSFC structures within Tekla.

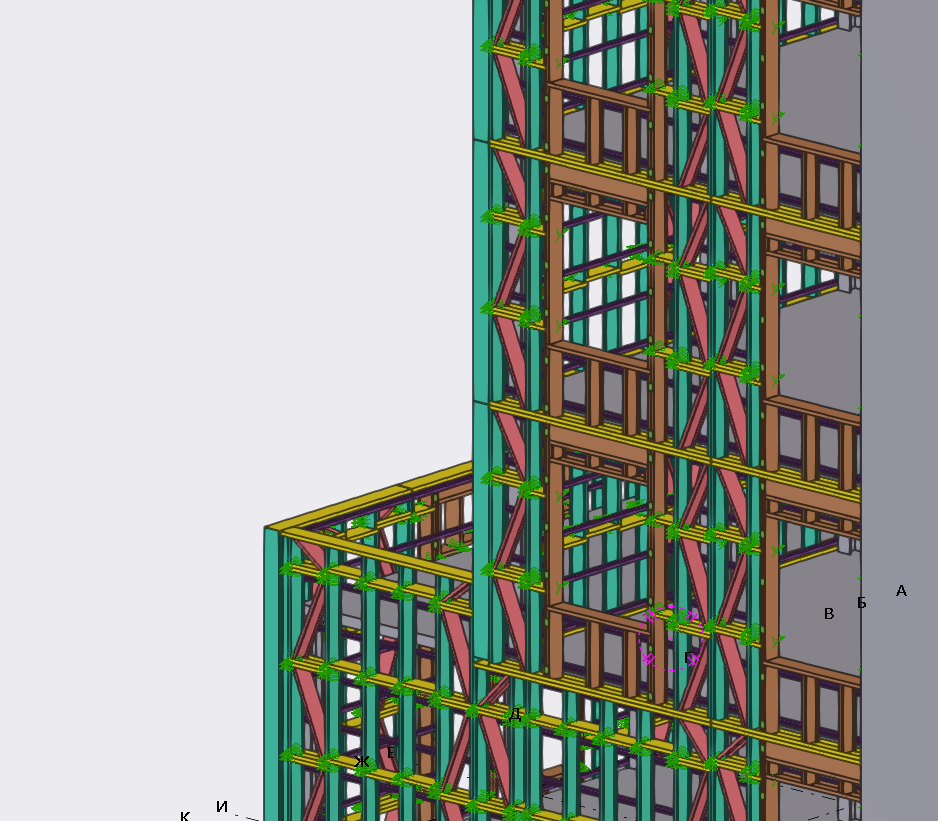

Exceptional Detailing: The plugin takes detailing to the next level by incorporating intricate elements such as precise cutouts, bolt placements, and comprehensive control over LSFC components. This attention to detail ensures that every aspect of the structure is accurately represented in the digital model.
Window Opening Creation: a feature for creating window openings within panels, further enhancing the plugin's capabilities for LSFC projects.

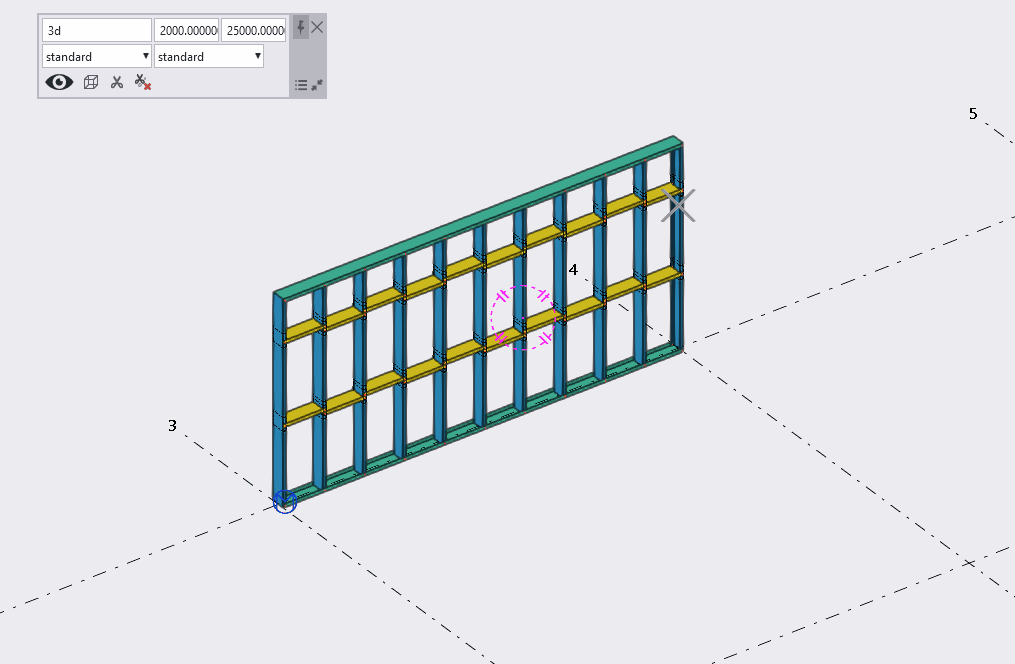

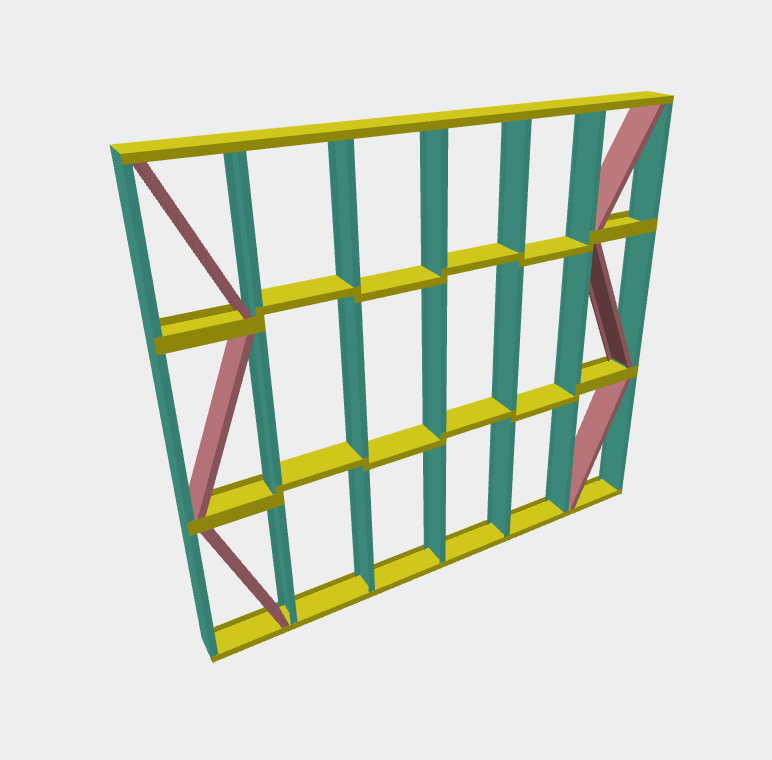

Panel Generator: One of the standout features of this plugin is its panel generator, which automates the creation of LSFC panels. This feature streamlines the design process and significantly reduces the time required for creating detailed panel layouts.
In conclusion, this innovative solution is poised to drive efficiency and precision in LSFC projects, ultimately contributing to the success of the industry as a whole.
